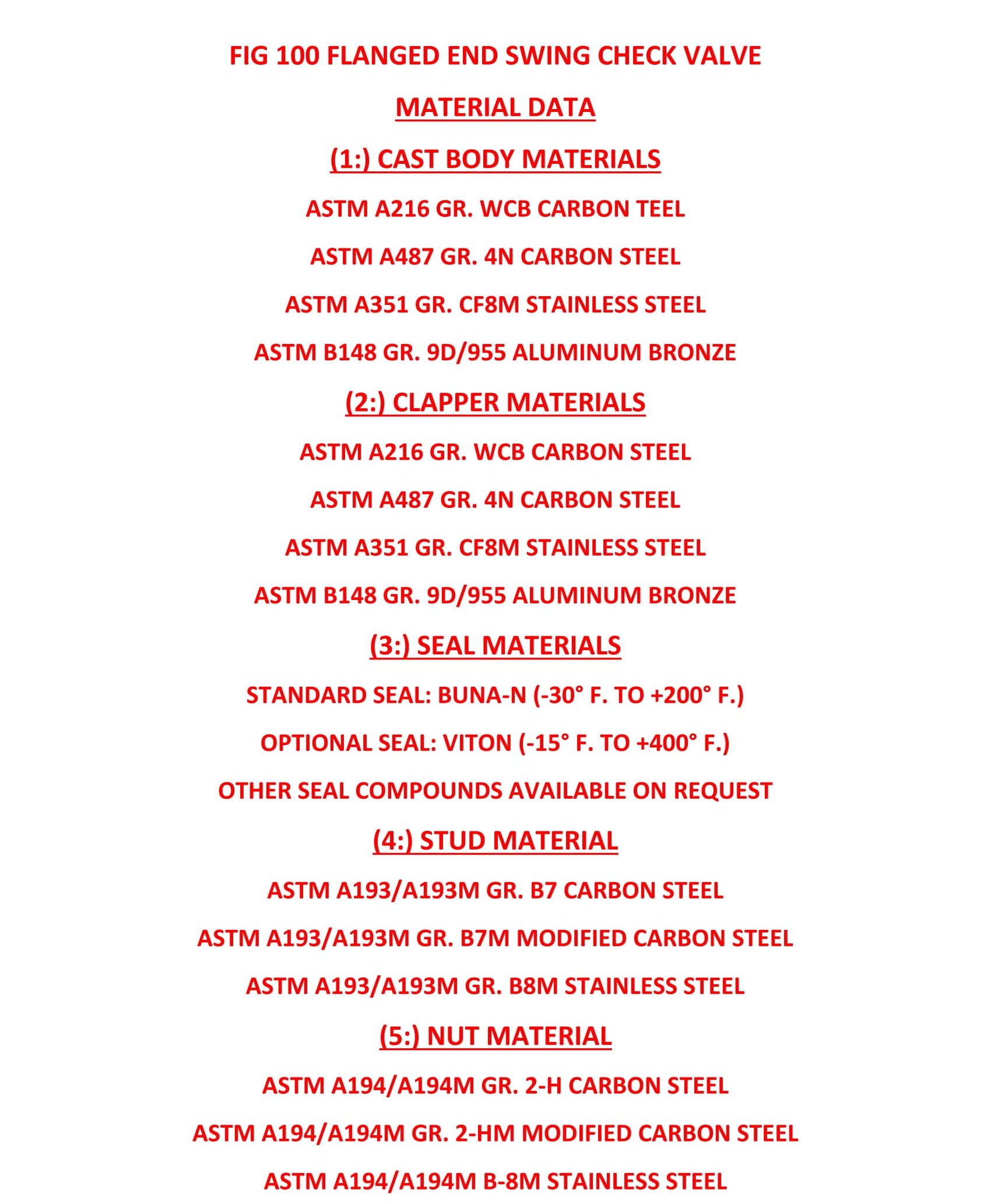

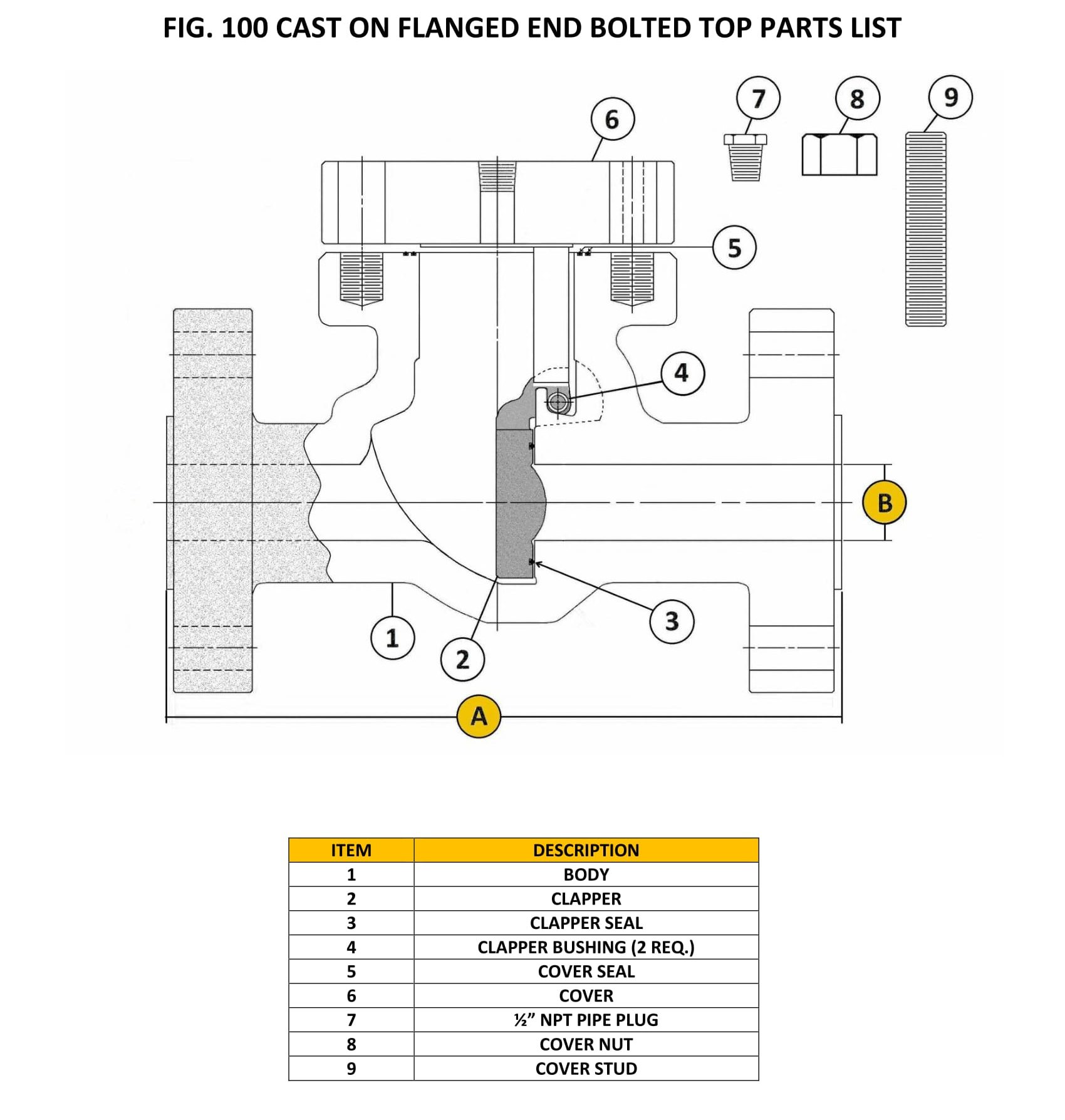

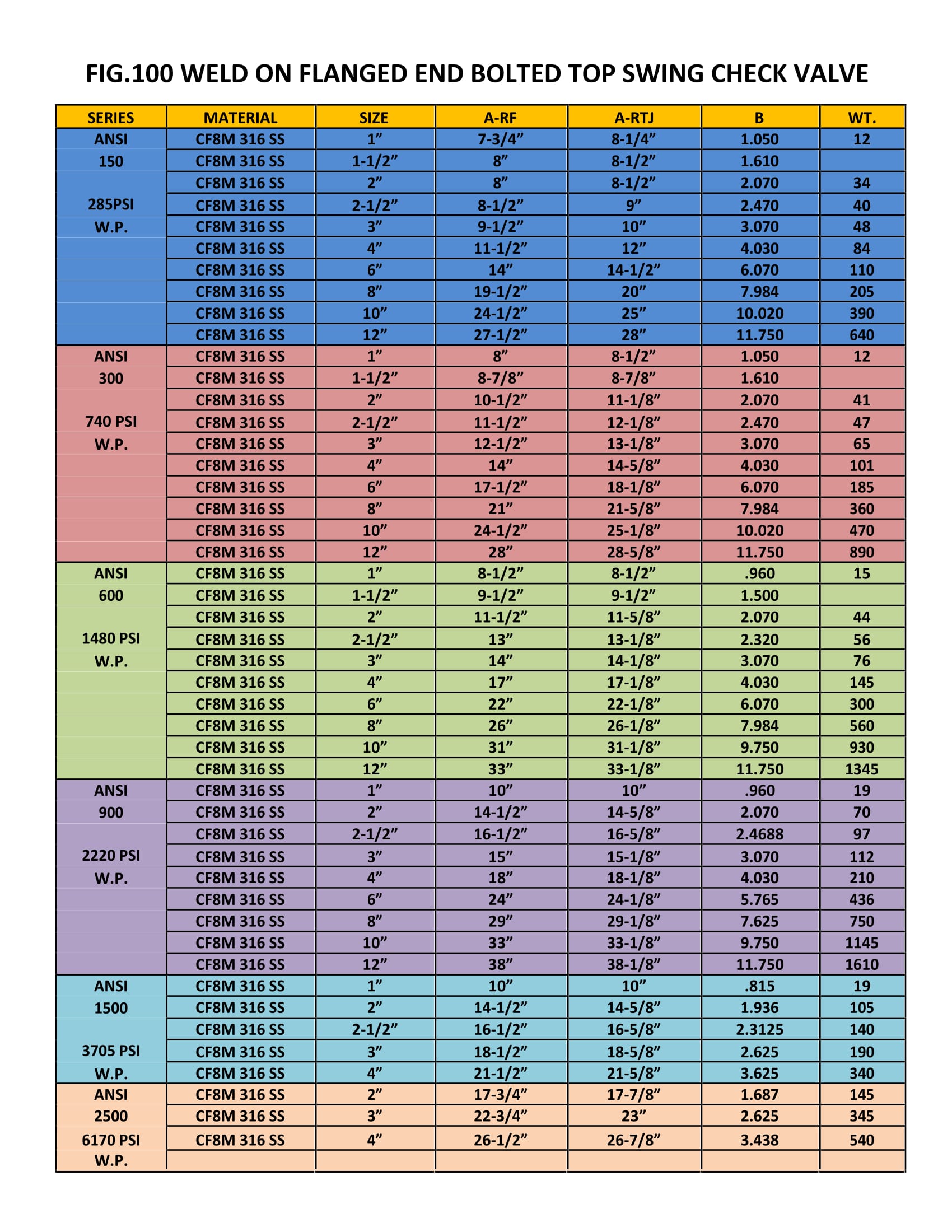

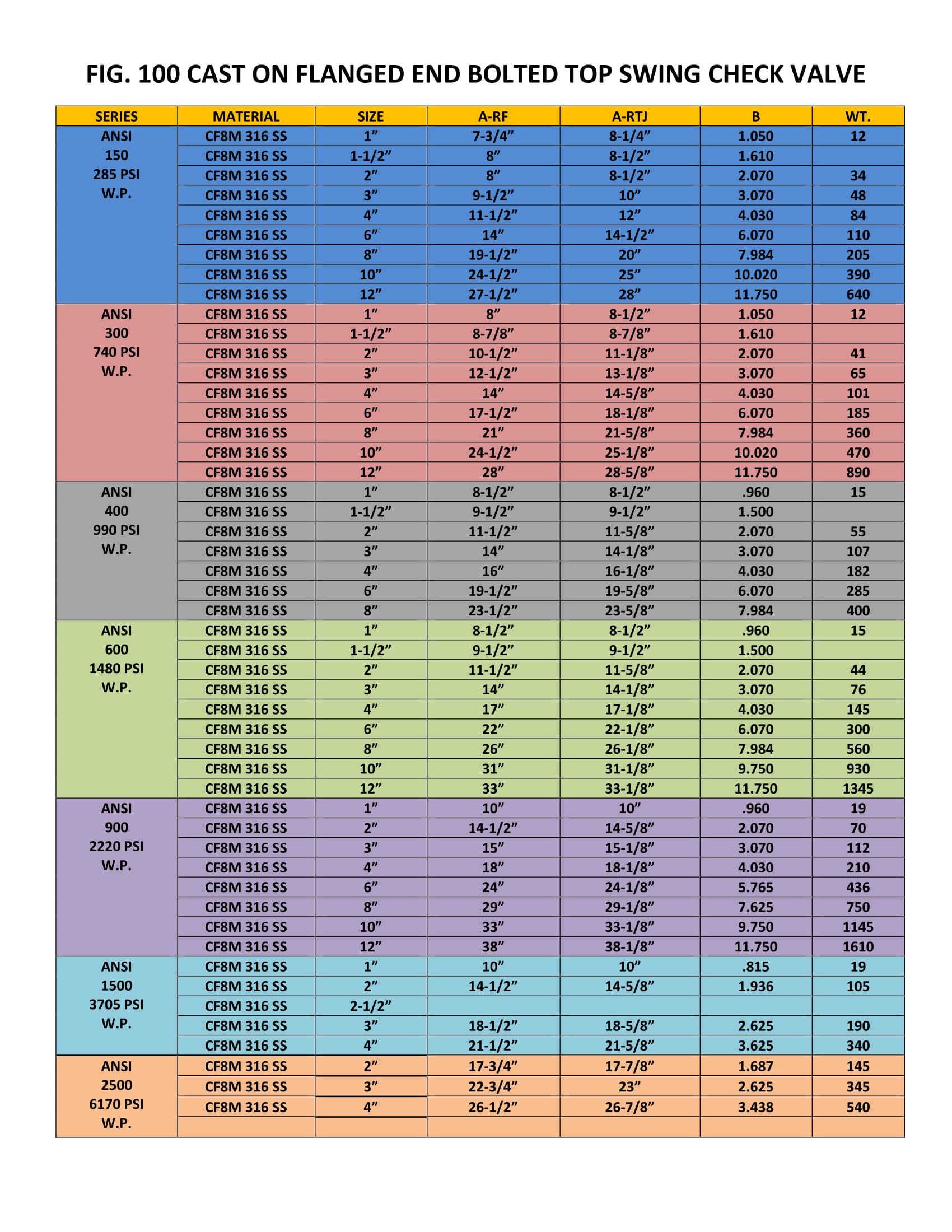

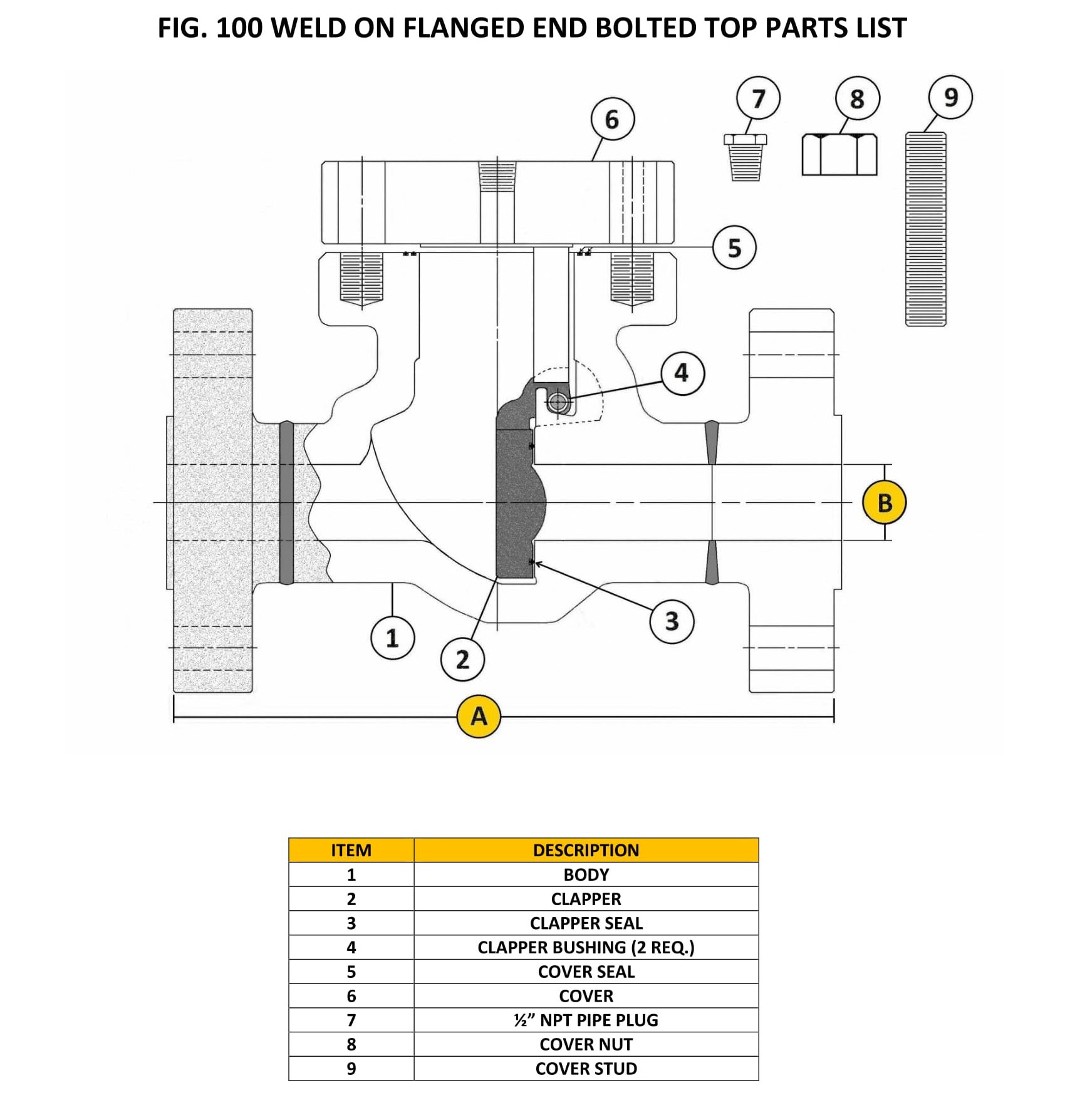

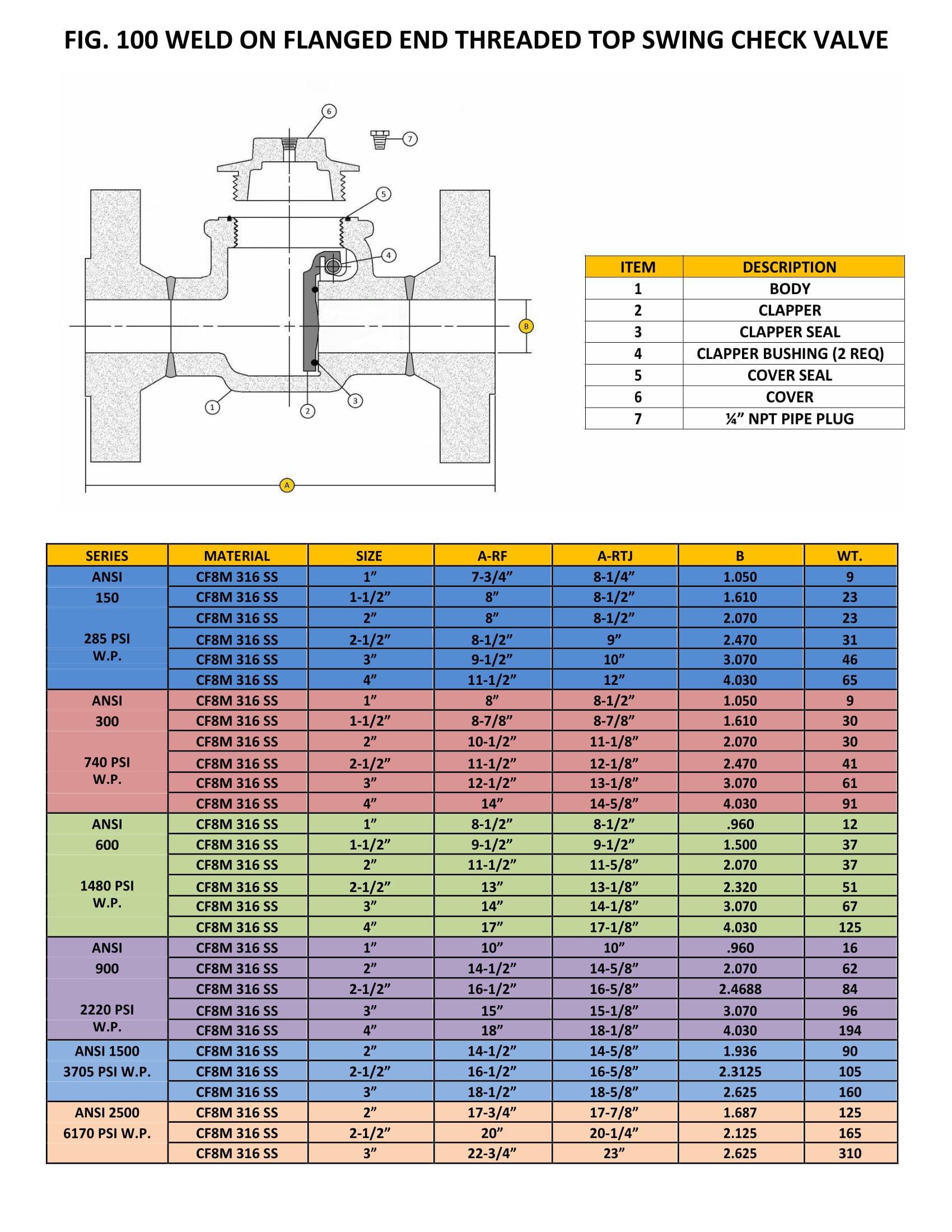

FIG 100 FLANGED END SWING CHECK VALVE

MATERIAL DATA

(1): CAST BODY MATERIALS

ASTM A216 GR. WCB CARBON STEEL

ASTM A487 GR. 4N CARBON STEEL

ASTM A351 GR. CF8M STAINLESS STEEL

ASTM B148 GR. 9D/955 ALUMINUM BRONZE

(2): CLAPPER MATERIALS

ASTM A216 GR. WCB CARBON STEEL

ASTM A487 GR. 4N CARBON STEEL

ASTM A351 GR. CF8M STAINLESS STEEL

ASTM B148 GR. 9D/955 ALUMINUM BRONZE

(3): SEAL MATERIALS

STANDARD SEAL: BUNA-N (-30° F. TO +200° F.)

OPTIONAL SEAL: VITON (-15° F. TO +400° F.)

OTHER SEAL COMPOUNDS AVAILABLE ON REQUEST

(4): STUD MATERIAL

ASTM A193/A193M GR. B7 CARBON STEEL

ASTM A193/A193M GR. B7M MODIFIED CARBON STEEL

ASTM A193/A193M GR. B8M STAINLESS STEEL

(5): NUT MATERIAL

ASTM A194/A194M GR. 2-H CARBON STEEL

ASTM A194/A194M GR. 2-HM MODIFIED CARBON STEEL

ASTM A194/A194M B-8M STAINLESS STEEL

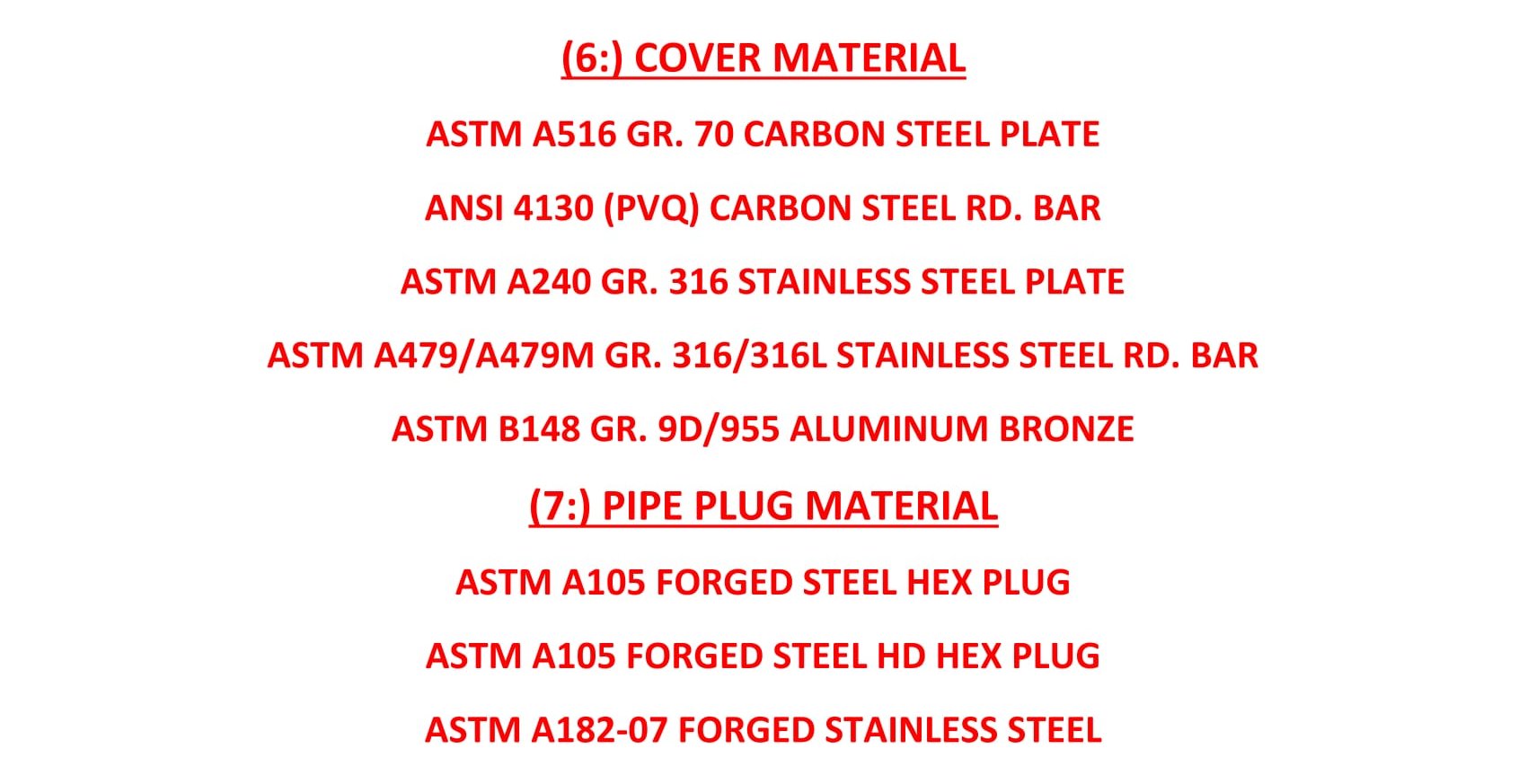

(6): COVER MATERIAL

ASTM A516 GR. 70 CARBON STEEL PLATE

ANSI 4130 (PVQ) CARBON STEEL RD. BAR

ASTM A240 GR. 316 STAINLESS STEEL PLATE

ASTM A479/A479M GR. 316/316L STAINLESS STEEL RD. BAR

ASTM B148 GR. 9D/955 ALUMINUM BRONZE

(7): PIPE PLUG MATERIAL

ASTM A105 FORGED STEEL HEX PLUG

ASTM A105 FORGED STEEL HD HEX PLUG

ASTM A182-07 FORGED STAINLESS STEEL
