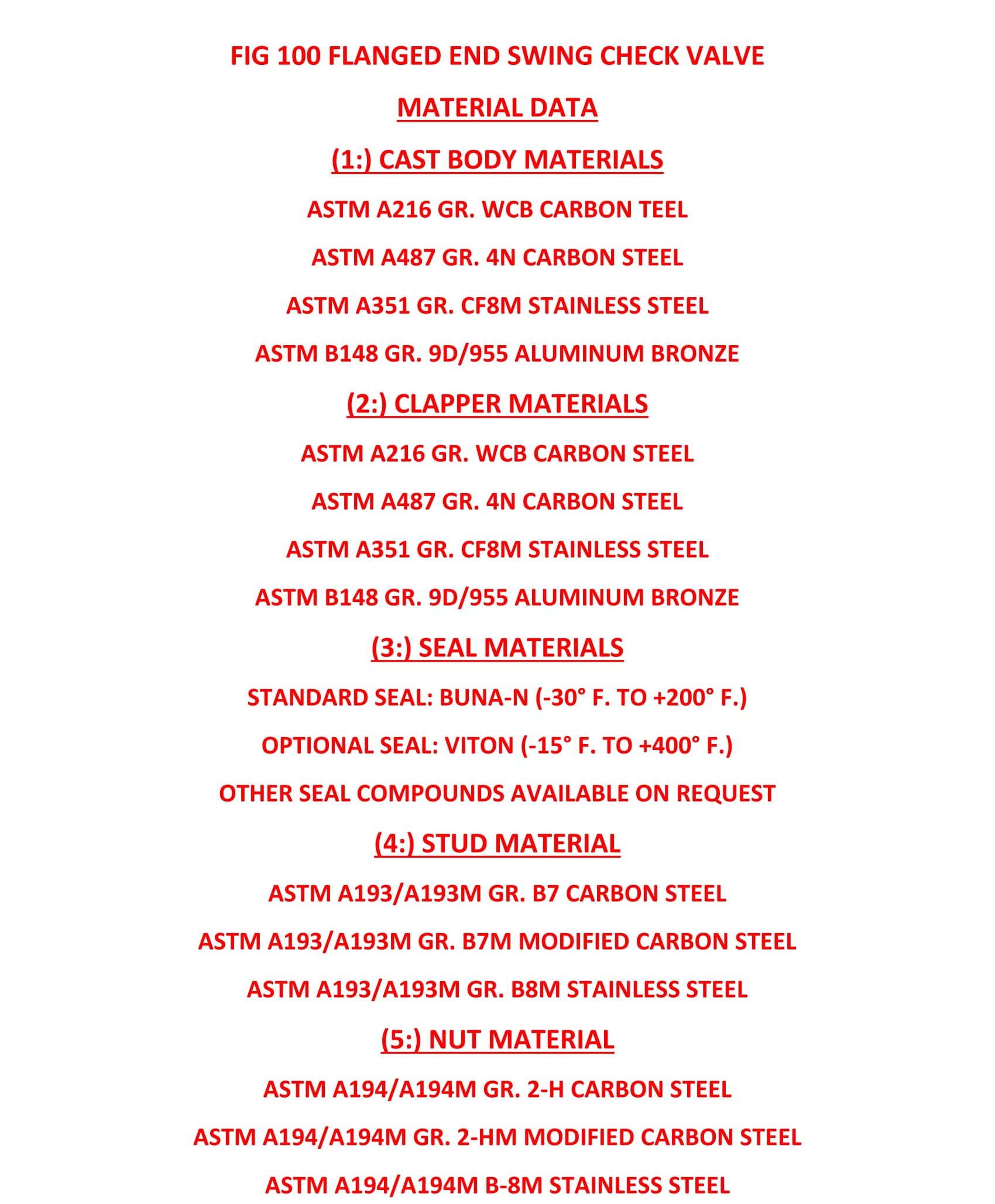

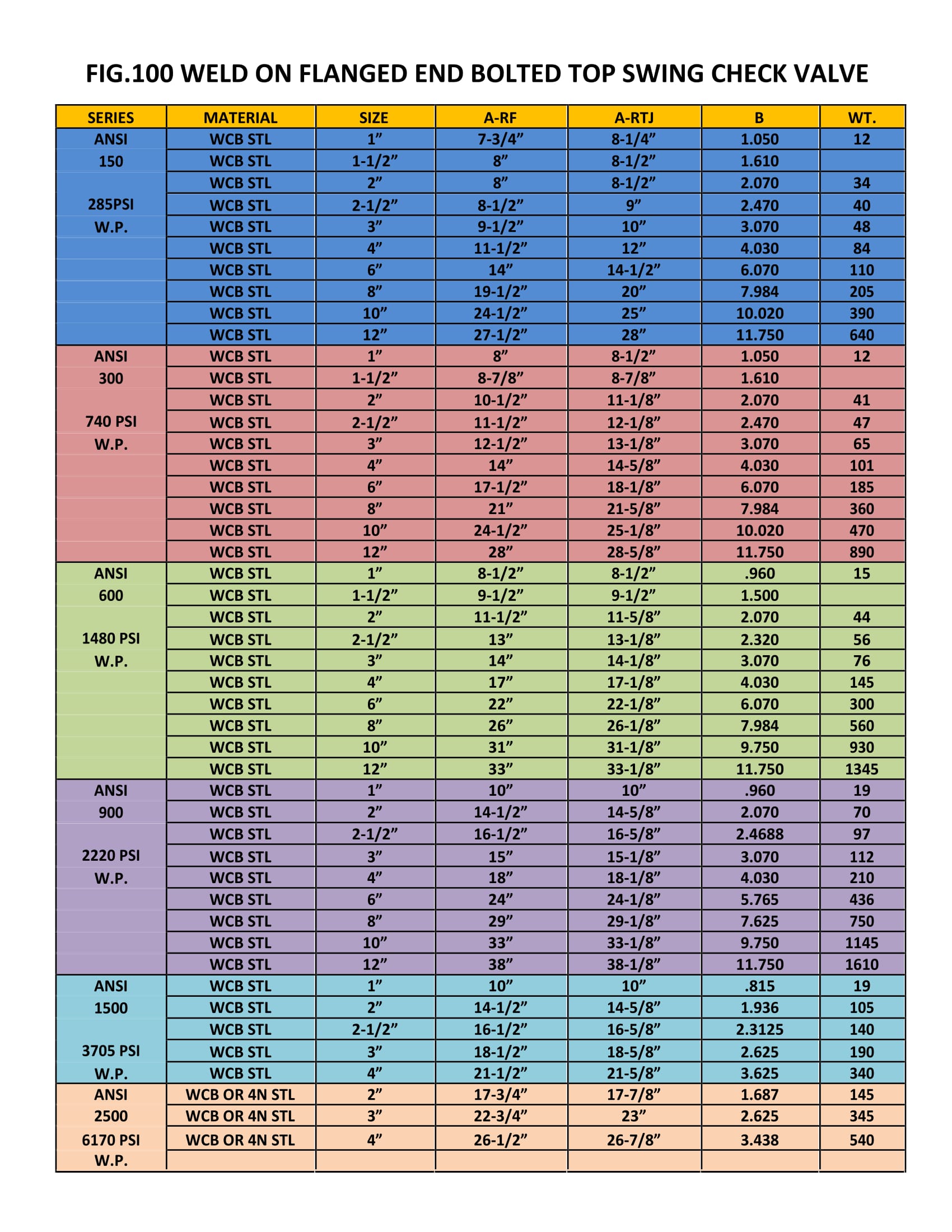

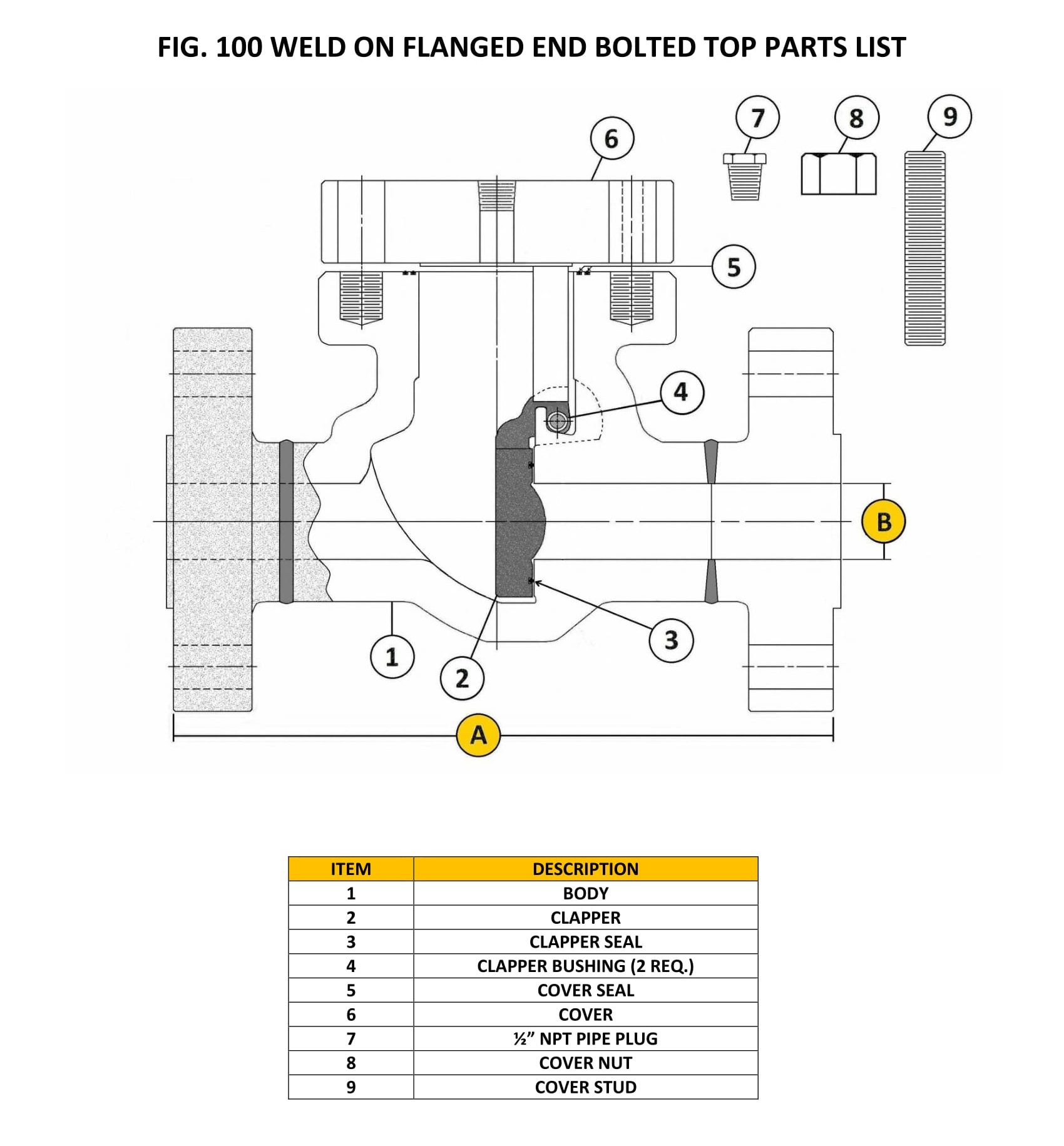

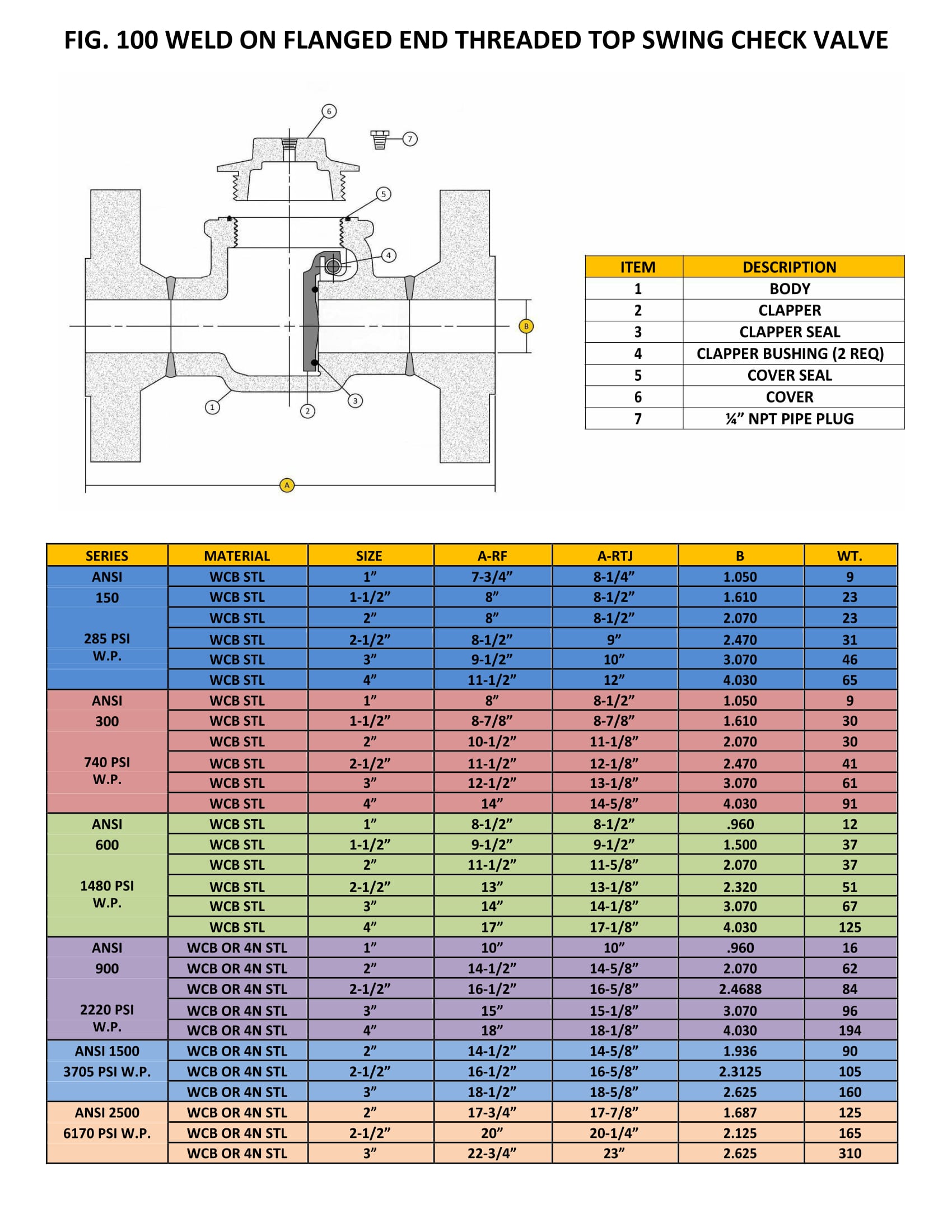

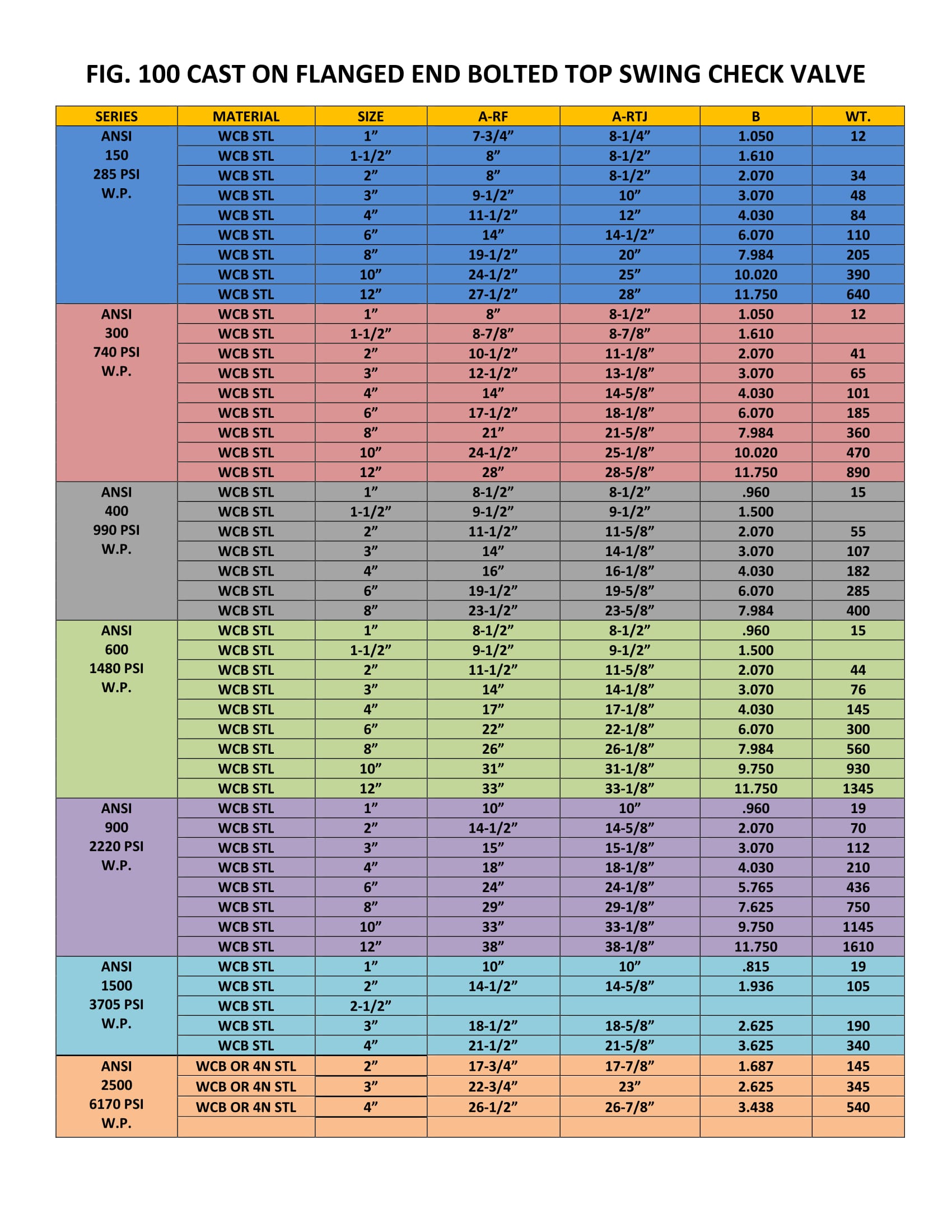

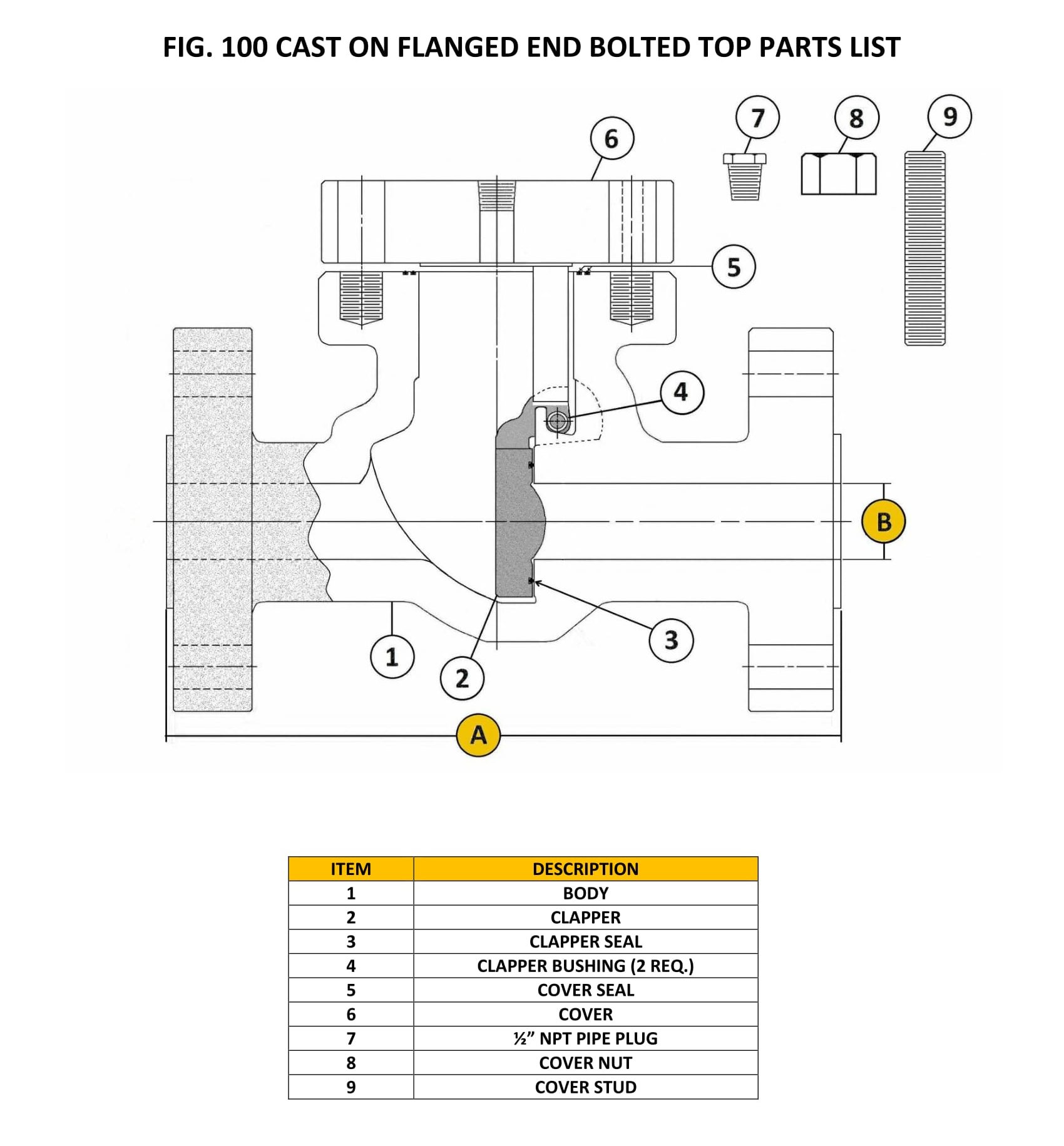

FIG 100 FLANGED END SWING CHECK VALVE

MATERIAL DATA

(1): CAST BODY MATERIALS

ASTM A216 GR. WCB CARBON STEEL

ASTM A487 GR. 4N CARBON STEEL

ASTM A351 GR. CF8M STAINLESS STEEL

ASTM B148 GR. 9D/955 ALUMINUM BRONZE

(2): CLAPPER MATERIALS

ASTM A216 GR. WCB CARBON STEEL

ASTM A487 GR. 4N CARBON STEEL

ASTM A351 GR. CF8M STAINLESS STEEL

ASTM B148 GR. 9D/955 ALUMINUM BRONZE

(3): SEAL MATERIALS

STANDARD SEAL: BUNA-N (-30° F. TO +200° F.)

OPTIONAL SEAL: VITON (-15° F. TO +400° F.)

OTHER SEAL COMPOUNDS AVAILABLE ON REQUEST

(4): STUD MATERIAL

ASTM A193/A193M GR. B7 CARBON STEEL

ASTM A193/A193M GR. B7M MODIFIED CARBON STEEL

ASTM A193/A193M GR. B8M STAINLESS STEEL

(5): NUT MATERIAL

ASTM A194/A194M GR. 2-H CARBON STEEL

ASTM A194/A194M GR. 2-HM MODIFIED CARBON STEEL

ASTM A194/A194M B-8M STAINLESS STEEL
